Collaboration With Design Rescue LA Makes for Spectacular Contemporary Beverly Hills Wine Cellar Installation

We at Coastal Custom Wine Cellars often partner with other home design companies. We are known throughout the state of California, as well as nationally as being one of the top wine cellar builders, always doing it the RIGHT way. In this project we partnered with Catherine Lamson of Design Rescue LA to build this spectacular wine display in Beverly Hills.

Modern Design in Los Angeles

A private custom wine cellar is a very tasteful feature to add to a home.  It enhances the aesthetic quality and increases the curb appeal of a residential abode.  Any available living space can be converted into a climate controlled wine room, as exhibited by this recently completed modern wine cellar installations project in Beverly Hills, California. Modern design is increasing in popularity, especially in urban locations like L.A. We were excited to offer a clean design to this contemporary yet comfortable wine display space.

Beverly Hills Wine Cellar Installations Los Angeles Designs




Catherine Lamson of Design Rescue LA

Catherine Lamson of Design Rescue LA

3D Designs Help Partners and Clients Visual Projects

As mentioned, Coastal Custom Wine Cellars partnered with Catherine Lamson of Design Rescue LA in the wine cellar design and construction of this Beverly Hills wine cellar installations project.  After discussing various key features with Catherine, the Coastal team prepared a 3D design package for the homeowners to look at. We find that 3D designs help our clients visualize the project and understand what to expect.

Coastal Custom Wine Cellars provides their clients with free three dimensional illustrations, showing multiple angles of the proposed wine cellar designs.  The 3D design package features an overhead view of the plan, as well as different elevations.  This allows each client to review and revise the design before actual wine cellar installations take place.

Wine Cellar Project Overview

The design and construction process for this Los Angeles  installation project started in January 2014 and March 2014, respectively, and the cellar was completed in June 2014.  The proposed area for wine cellar construction measures 13’ wide x 4’ deep x 8’ height.  The Coastal team decided to go with a seamless glass wall and entry to elegantly showcase the client’s collection of over 500 wine bottles.

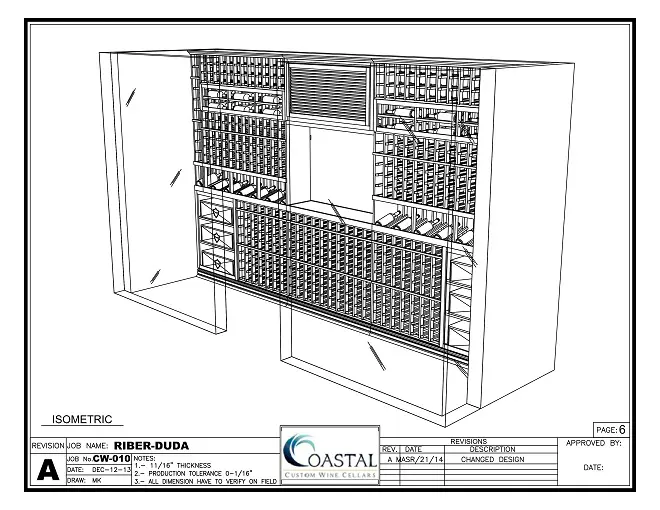

3D Wine Cellar Design Los Angeles

3D Wine Cellar Design Los Angeles

Wood Wine Racks

Coastal installed Mahogany wine cellar racks with a chestnut stain and satin finish.  The racking system rests on a 4-inch toe kick base, that elevates the unit a few inches off the floor, thereby keeping wine bottles safe against damage and breakage.  Base molding lends a unique character to the wine racks.

The top half of the wine racking system features a spacious tabletop area, for serving and decanting wines.  Single bottle compartments dominate the top and bottom part of the wine cellar racks.  Openings for individual bottle storage measure 3 ¾” x 3 ¾”, and can accommodate most 750 ml bottles.  A high reveal display row with LED lighting allows the client to highlight some of his favorite wine labels.

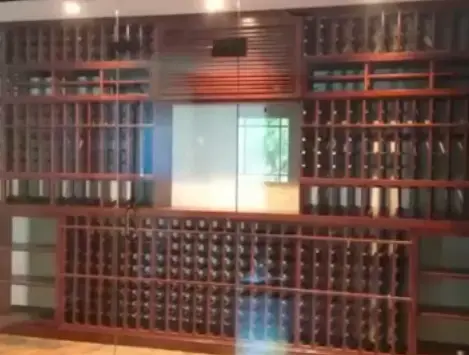

Mahogany Wine Cellar Racks

Mahogany Wine Cellar Racks

Several inches above the display row are horizontal display openings that facilitate label forward orientation of wine bottles, for easy selection and retrieval.  The horizontal display racks can store two bottles in one opening, thus adding to the total bottle capacity of the wine room.

A total of 22 bottle openings for magnums (1.5L) are provided at the far left and far right of the wine racking system.

The bottom part of the wine cellar racks features more individual bottle storage openings.  The rectangular openings at the far left and far right of the racking system allow for wood case or bulk storage.  The wood case shelves can accommodate a total of 6 wood cases.

Wine Cellar Refrigeration by Experts

To achieve and maintain the ideal wine storage temperature in this Los Angeles home, the Coastal team utilized an Arctic Aire split refrigeration system by Arctic Metalworks Inc.  A split system allows the noisiest part of the refrigeration equipment (the condensing unit) to be installed in a remote location, thus promoting whisper-quiet and ultra-efficient operation.

Arctic Aire Split Wine Cellar Refrigeration

Arctic Aire Split Wine Cellar Refrigeration

For this wine cellar installations project, the evaporator unit of the climate control system is mounted just above the tabletop area.  In order to conceal the refrigeration equipment from view, it is covered by an operable louvered grill cover, which is constructed from the same wood variety as the wine racks, in order to blend well with the overall wine cellar design.  In addition, the grill cover can be opened and closed, to allow for easy access during cleaning and maintenance.

Modern Glass Entry

Since the Beverly Hills wine cellar project is located in the living room area of the home, utilizing a seamless glass wall and entry not only enhanced the beauty of the space, but also allowed the client to tastefully display his precious wine collection, and show off the exquisite interior of wine cellar design Los Angeles.

A seamless glass wall and entryway is an amazing way to feature the different wines that are on display.  It creates a visually appealing wine storage and display area, as well as provides a nice and uninterrupted view into the wine enclave.

Beverly Hills Wine Cellar Installations Los Angeles

Beverly Hills Wine Cellar Installations Los Angeles

About the Designers and Builders—Coastal Custom Wine Cellars and Design Rescue LA

Coastal Custom Wine Cellars is a full service company that specializes in wine cellar design, construction, and installation.  We also provide custom wine racks, flooring products, climate control systems, and wine cellar doors.  With over ten years of experience in the wine cellar construction industry, Coastal is dedicated to providing quality products and personalized service. If you’re interested in building a beautifully designed wine cellar and display in your home call us today.

Design Rescue LA has years of experience in creating design solutions for residential renovations.  They provide construction drawings, furniture and fabric selections, decorative lighting specifications, and plumbing and appliance specifications.

The collaborative effort between Coastal Custom Wine Cellars and Design Rescue LA resulted in a contemporary, elegant, and classy residential wine enclave, which is not only outstanding in wine cellar design, but also reflective of the 90210 lifestyle.

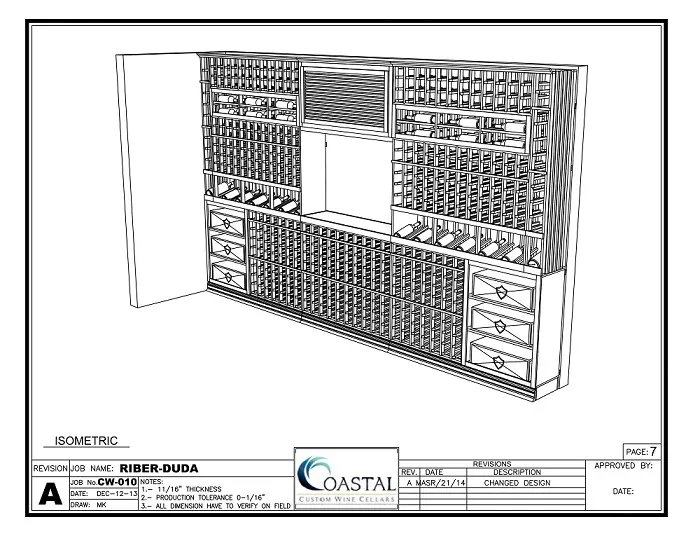

3D Wine Cellar Design by Coastal

3D Wine Cellar Design by Coastal

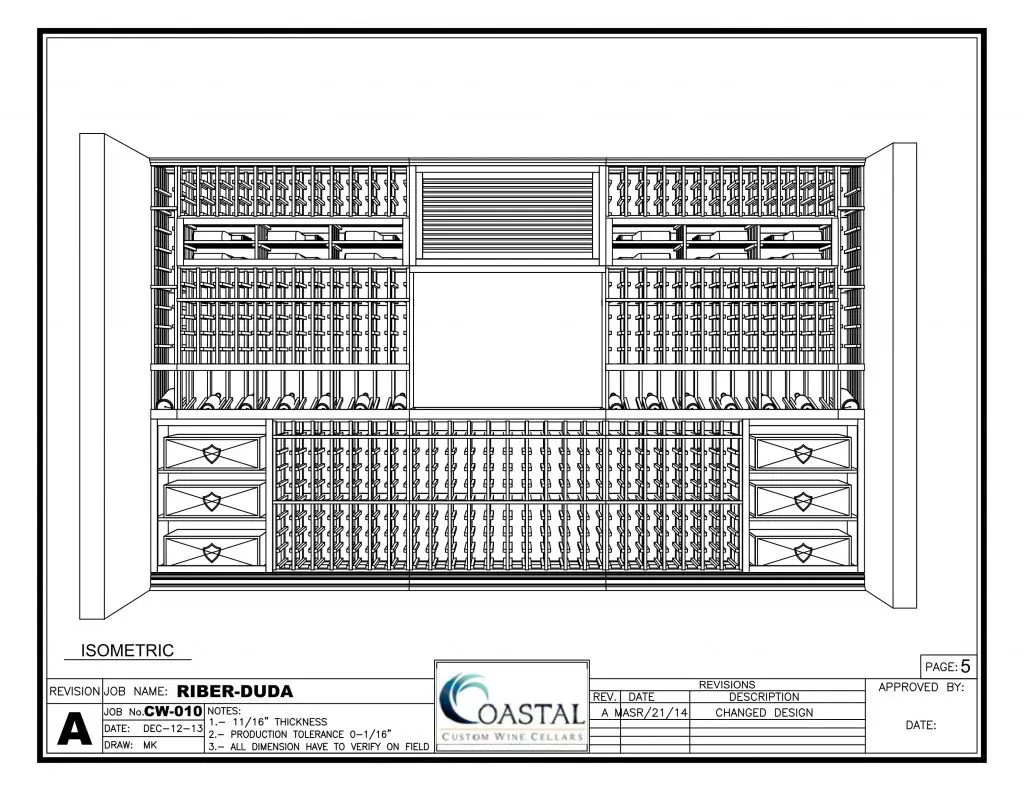

3D Wine Cellar Design

3D Wine Cellar Design

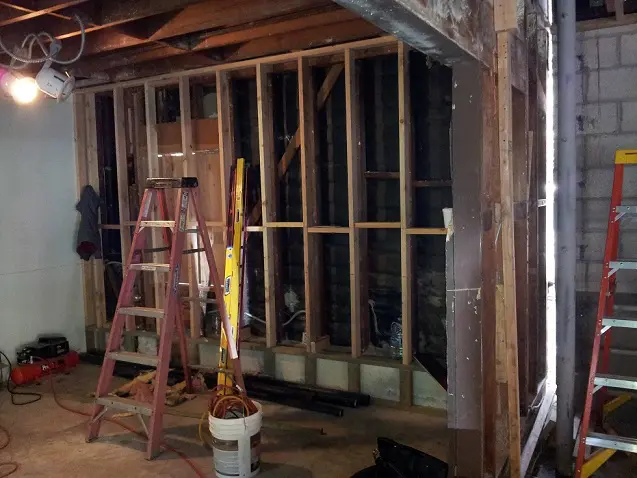

Wine Cellar Construction Los Angeles
